HDR-2007 Polyphase network and so on


Description

Amplitude and phase trim circuit, 8 stage RC polyphase network and signal sum (SSB demodulation)...

Schematics

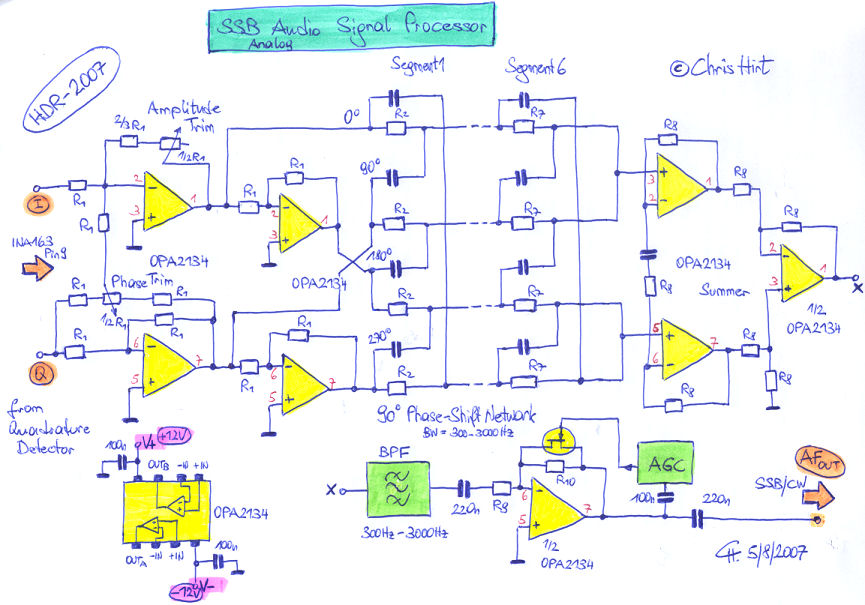

Version 050807

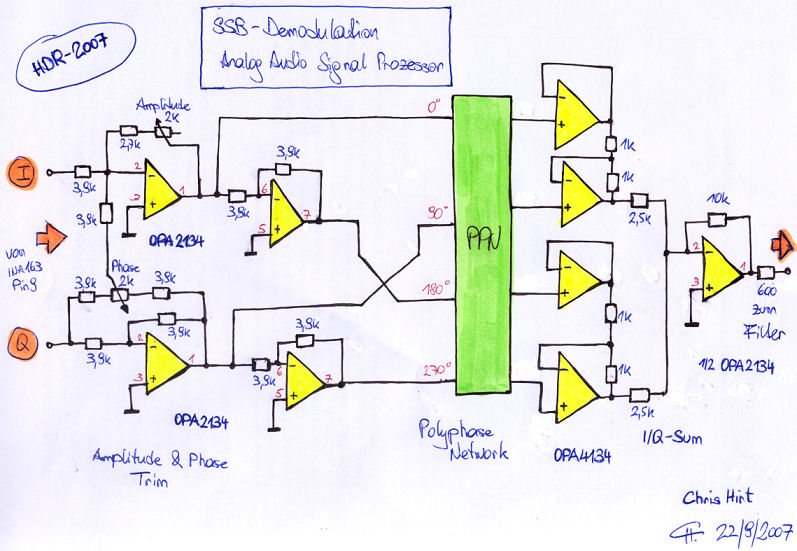

Version 220907

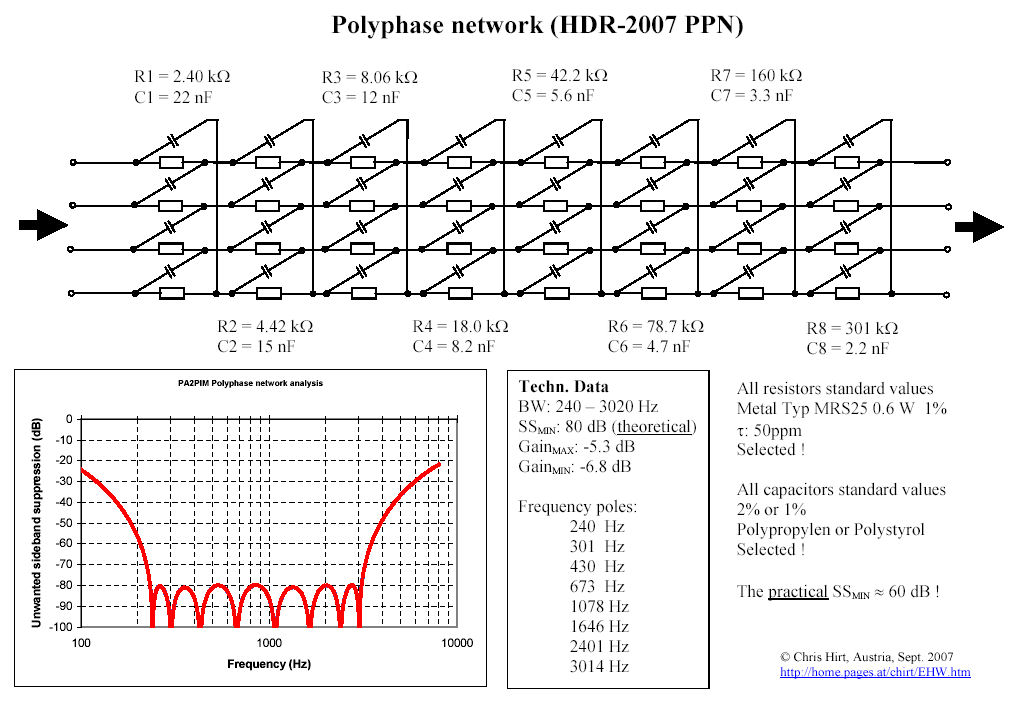

Polyphase Network

Pictures

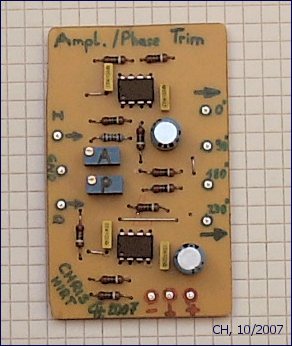

Ampl/phase trim

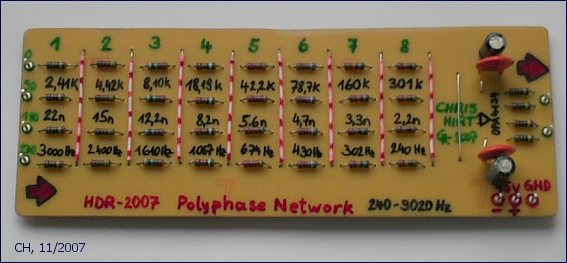

PPN upside

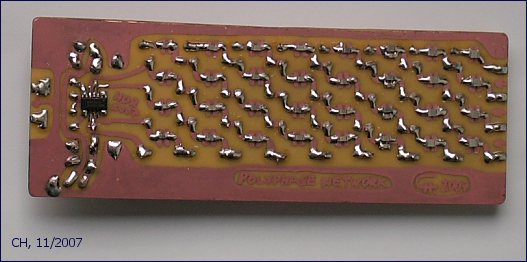

PPN backside
