HDR-2007 Quadrature Detector and AF Preamplifier

Description

...

Schematic

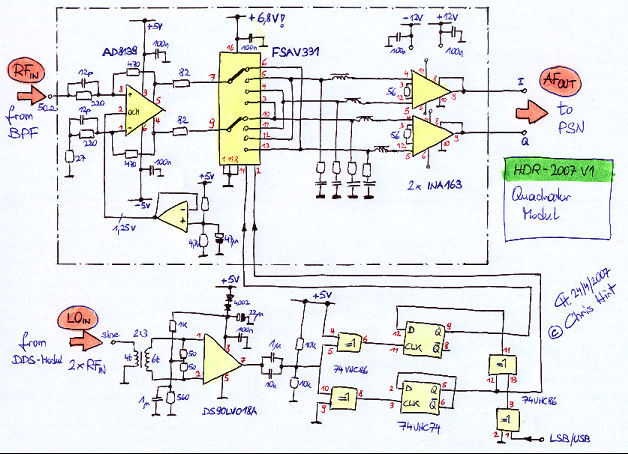

Version 240407

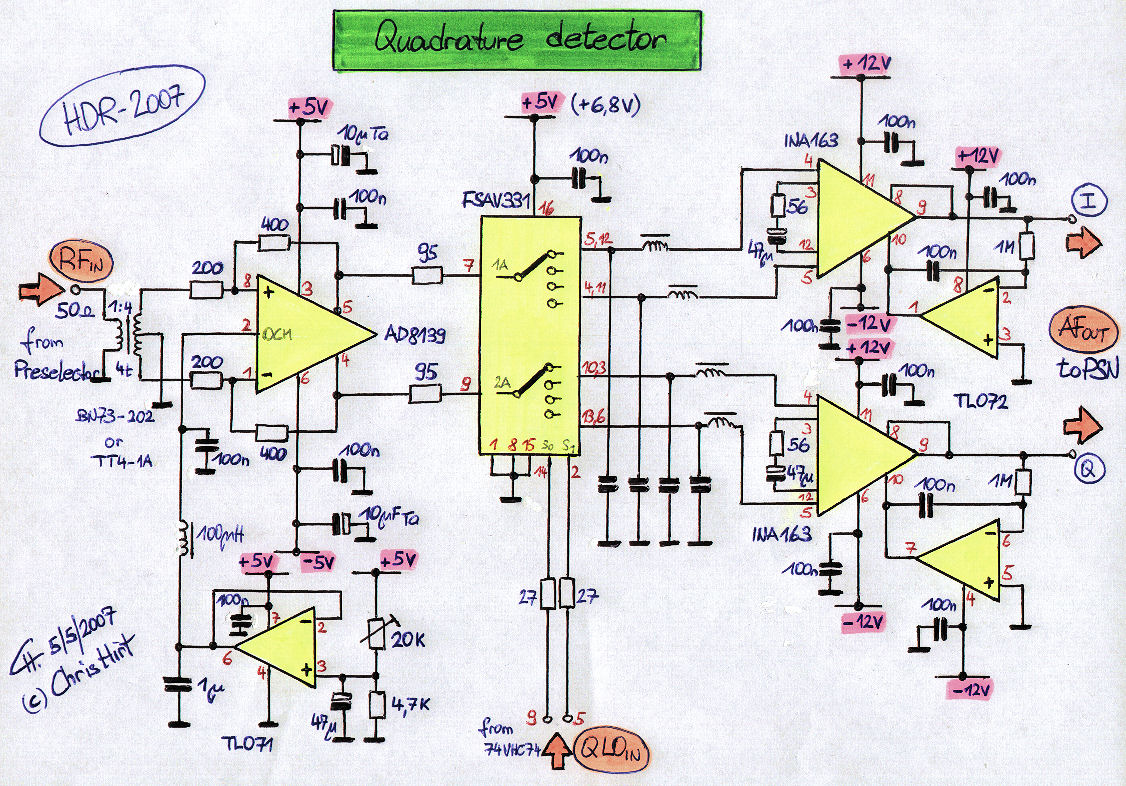

Version 050507

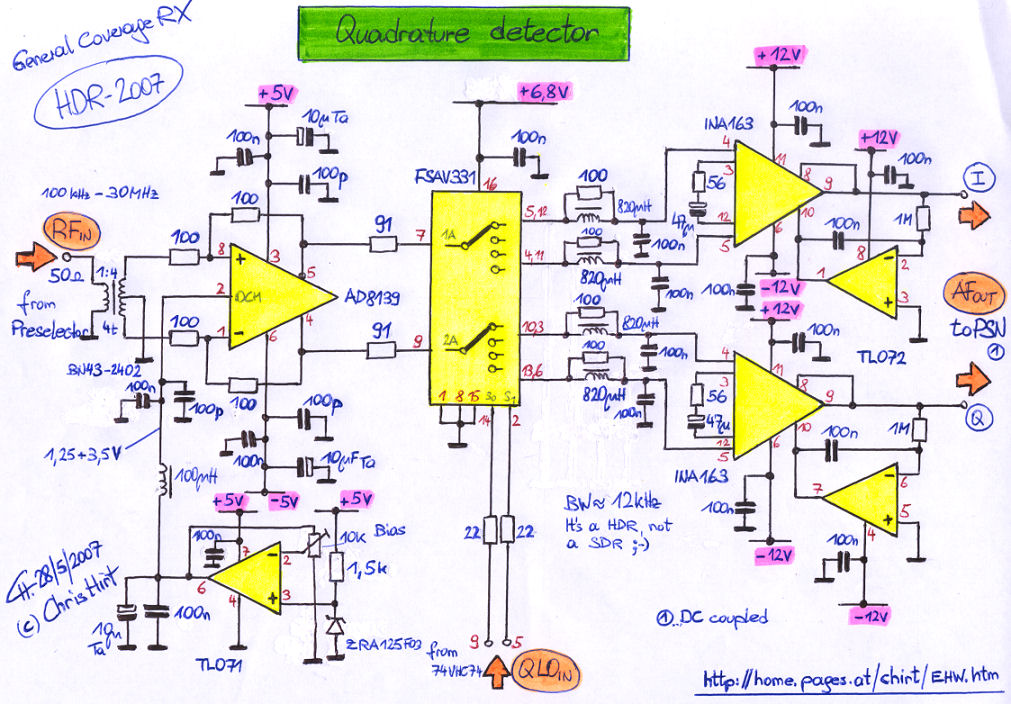

Version 280507

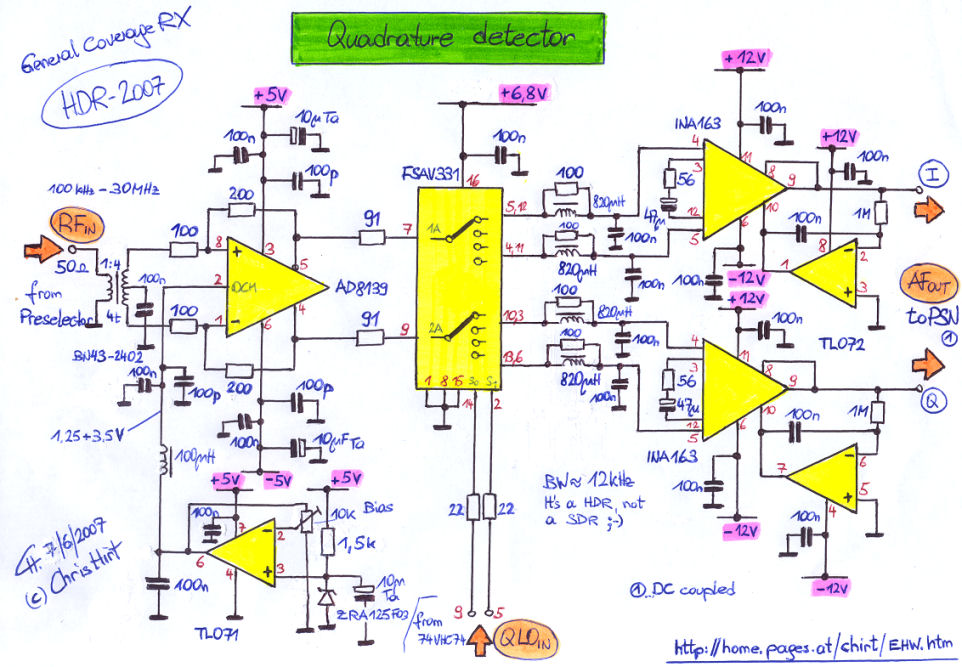

Version 070607 (last)

Pictures

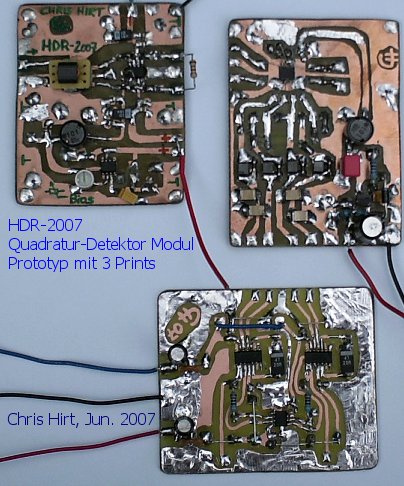

Prototyp

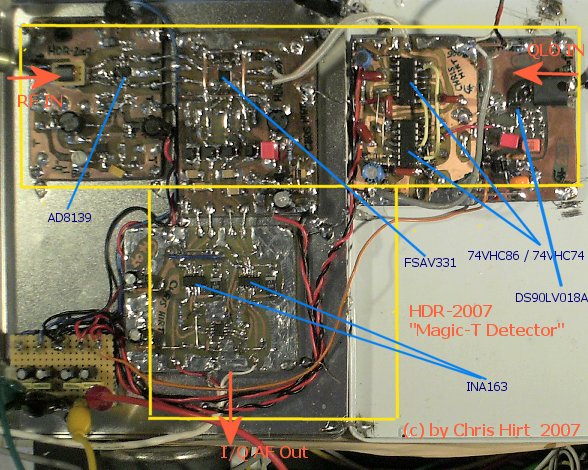

QSD with QLO
